PRIMA 1000 Series Access Panels FIRE RATED (up to 2hrs)
| Company | Profab Access |
|---|
Images

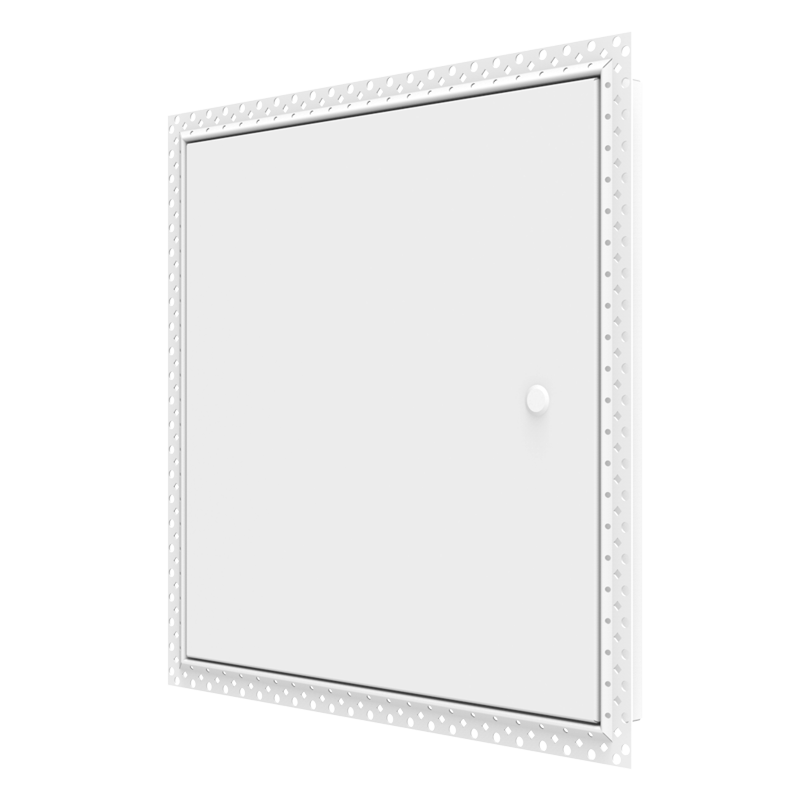

The PRIMA 1000 SERIES fire rated flush metal access panel provides simple access through fire rated wall and ceiling partitions where access to concealed services is required.
Suitable for vertical or horizontal use, the access panels are independently fire rated up to 120 minutes for single and double door configurations up to a maximum frame size of 600 mm x 1200 mm. Sizes up to 750 mm x 1500 mm are also available and fire rated up to 90 minutes. Size 900 mm x 900 mm fire rated up to 60 minutes. Beaded and picture frame edge options to suit application.
Features / Benefits
COMPOSITION
The metal frame holds a flush metal door through a simple concealed pivot hinge device. The door is held closed with a concealed budget lock (BL) which opens towards the user.
- Fire rated up to 120 minutes, depending on size and orientation of panel
- Bi-directionally tested for fire integrity from both sides, when mounted vertically for wall access
- Lightweight, flush metal door with aesthetic finish
- Foil backed mineral wool liner
- Intumescent and smoke seal gasket
- Doors are removable if damage occurs or during installation
- Panels are supplied with simulated dry wall beaded frames (BF) and decorated on site to match the colour and texture of adjacent finish
- Concealed budget lock supplied with a white, round bung
- A constant 2mm gap is maintained between the door and frame by the ‘dome location’ system
- Airtight to Part L and smoke sealed
- Single door (SD) or double door (DD) configurations
- Fully recyclable at end of life
A range of stock sizes are available for fast delivery or access panels are made to order to meet bespoke requirements.
Guide Specification PRIMA 1000 SERIES – FIRE RATED
| SUITABILITY | Suitable for vertical or horizontal orientation where the panel is to be installed prior to tape and jointing or skim-coat plastering. Picture frame option for refurbishment applications. |
| MATERIAL | Frame 1.2mm / Door 1.2mm thick electro-galvanised mild steel |
| DOOR CONFIGURATION | For multi-door configurations, please contact our Technical team |
| FRAME EDGE | Beaded frame (BF) or Picture frame (PF) options |
| FRAME DEPTH | Overall depth – 44mm (a further 7mm at localised budget lock position) |
| FINISH | Etched powder coated primer to RAL 9010M (Matt finish). Other RAL colours available on request. |
| LOCK | Budget lock (BL) / Security key lock (SL) |
| STRUCTURAL OPENING | X and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+5) x (Y+5). |
| CLEAR OPENING | Clear available access once installed, with door in the open position is (X-70) x (Y-50) |
| INSTALLATION | Apertures formed in dry lined walls and ceilings should be suitably formed and adequately supported to take the additional weight and operating forces exerted during access panel use. See datasheet in downloads for more info. |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051 |
