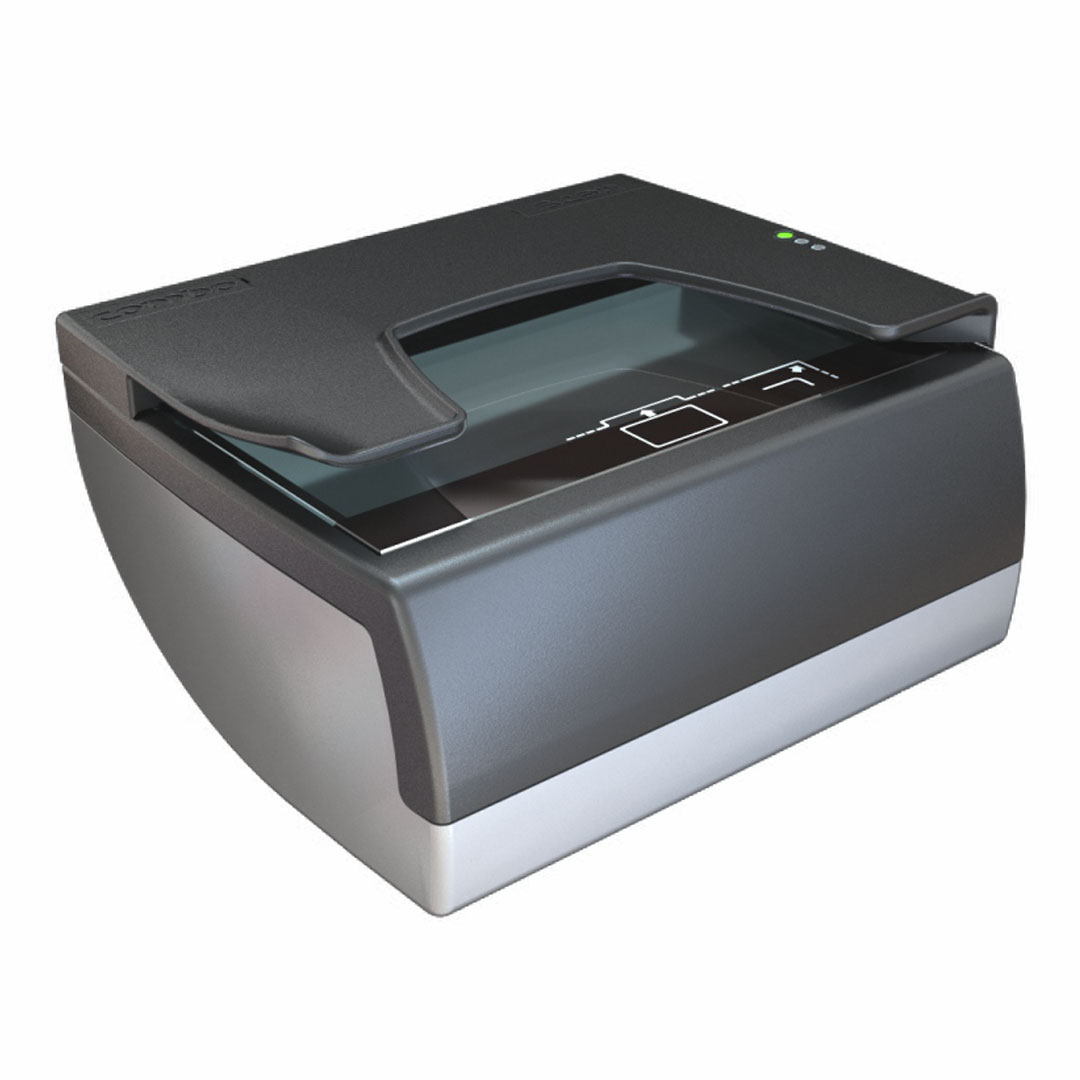

Combo Scan ID & Passport Scanner
| Company | Adaptive Recognition |
|---|---|
| Product code | Combo Scan 125, Combo Scan L |
Images
Description
With Combo Scan ID and passport scanners, you’ll have the power of forgery experts in the palm of your hand, including accurate data reading and authentication in less than 2 seconds and non-Latin character recognition. All this in a USB-powered, ultra-compact design.
Why Choose Combo Scan?
It’s REALLY fast: For an average human, extracting data from an ID and putting it into a data management system usually takes about 3–4 minutes per passenger. Combo Scan can do the same approximately 150 times faster – in less than 2 seconds.
It never makes mistakes: Thanks to the advanced optical character recognition (OCR) technology, as well as innovative features like Reflection Removal and Adaptive Light Control, Combo Scan has no problems reading and recognizing text in IDs, whether they are using a Latin alphabet or a non-Latin one.
It’s lightweight: Weighing only 0.6 kg (1.32 lbs), Combo Scan is compact enough to be easily transferred between traditional check-in desks or, in the case of duty-free shops, between cash desks.
It’s USB-powered: There is no need to look for a power socket nearby. Combo Scan can be powered by a computer via a USB connection, offering a highly convenient and portable single-cable operation.
It’s virtually maintenance-free: Combo Scan is equipped with a scratch-resistant glass surface for scanning. The devices contain no moving parts in order to reduce maintenance to the absolute minimum and provide precise ID verification for many years to come. Adaptive Recognition delivers Combo Scan with a three-year warranty to guarantee that all devices are on par with expectations 24/7.
Are you ready to equip your (mobile) check-in and duty-free shop cash desks with this ultra-light but super-smart ID reader and verification device? The experts at Adaptive Recognition are more than happy to answer your questions. Head on to this page to learn more about Combo Scan and reach out for advice.
| Imaging | |
| Active scan area | 125 mm × 55 mm (4.92” × 2.17”) |
| Illumination sources | LED: visible white, IR (B900), UVA (optional) |
| Image resolution | 500 PPI |
| Provided Images | Visible, IR, OVD image, glare-free image, UV (optional) |
| Image formats | BMP, JPG, JPG2000, PNG |
| Image color depth | 24 bits/pixels [RGB, 8 bits/pixels (IR image)] |
| Reading Capability | |
| Automatic Document Detection (ADD) | YES |
| Reflection Removal (RR) | YES |
| Adaptive Light Control | YES |
| ICAO MRZ reading | ICAO compliant documents per ICAO 9303 specification Part 1, Part 1v2, Part 2, Part 3, and Part 3v2 for Type ID-1, ID-2, and ID-3 MRZ Optical Character Recognition |
| VIZ reading | Available with Adaptive Recognition VIZ OCR software for ID-1 size documents |
| Barcode reading | 1D: UPC-A, EAN8, EAN13, Code39, Code128, ITF
2D: PDF 417, Data Matrix, QR Code, Aztec Code From paper-based documents AAMVA compliant PDF417 and IATA BCBP |
| Programming & Interfaces | |
| Supported Operating Systems | Windows 8, 8.1, 10 + Linux (ask for details) |
| Software Development Kit (SDK) | Complete SDK including DLLs and demo programs |
| Programming languages | C/C++, C#, Visual Basic 6.0, Delphi, VB.NET, Java |
| General interfaces | Adaptive Recognition native, Twain, and Acuant AssureID |
| Advanced Document Authentication | Data consistency checks: MRZ, VIZ, barcodes
R B900 and UV dull paper check |
| Internal memory | Storing factory calibration |
| Status indicators | Three programmable status LEDs (yellow, red, green) |
| PC connection | USB 2.0 high speed (USB 3.0 compatible) |
| Firmware upgrade | Automatic, via USB |
| Mechanical and Other Data | |
| Size (width x depth x height) | 152 mm × 130 mm × 82 mm (5.98” × 5.12” × 3.23”) |
| Weight | 0.6 kg (1.32 lbs.) |
| Operating temperature | 5 °C to 45 °C (45 °F to 113 °F) |
| Operating humidity | 0–95 % (non-condensing) |
| Power supply | From USB with no external power supply is required |
| L-frame for coverless design | Optionally available |
| Case housing | Sturdy ABS-PC plastic |
| Security | Kensington® security slot |
| Window glass | 4 mm (0.16” ) tempered glass |
| Compliances | FCC, CE, WEEE, RoHS |
| Maintenance | No moving parts, maintenance-free operation |
| Warranty | Three-year warranty, upgradeable |
