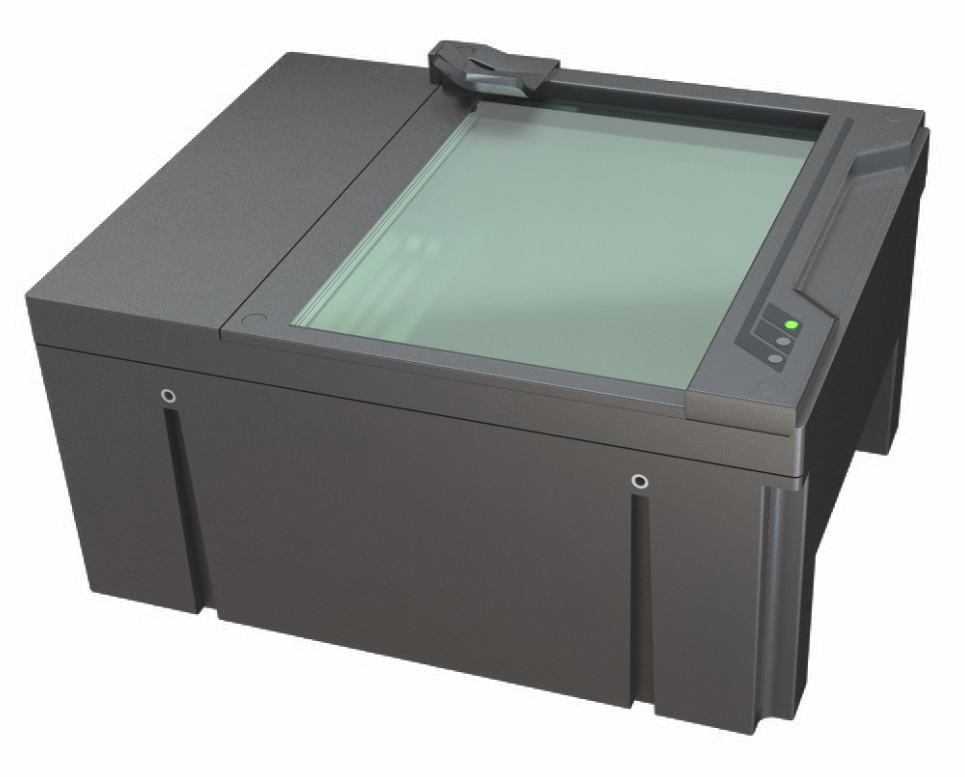

Combo Smart Kiosk Scanner
| Company | Adaptive Recognition |
|---|---|
| Product code | Combo Smart Kiosk L, Combo Smart Kiosk RL |
Images
Description
Specifications
Compact, e-gate-ready design, fast data capturing, authentication on the deepest levels, and easy use for staff and passengers alike, the Combo Smart Kiosk ID scanner is an ideal partner for ensuring a smooth passenger flow at airports regardless of size and traffic.
Why Choose Combo Smart?
- It reads and interprets everything: MRZ, VIZ, and barcodes; these aren’t a challenge for Combo Smart Kiosk. With a dual RFID antenna, the device can confidently retract data from RFID chips as well, regardless of where they are located in the examined document.
- It’s ICAO-compliant: The attached software includes an OCR fine-tuned for reading MRZ at a 99.98% rate while fully complying with the ICAO 9303 standard by the International Civil Aviation Organization.
- It performs infallible first-line authentication: Using different illumination wavelengths, Combo Smart Kiosk examines IDs as thoroughly as possible, even revealing details invisible to the naked eye and busting forgers right on the spot. And with great thoroughness comes great speed, providing a hassle-free ID verification experiencefor airport personnel and passengers alike.
- It’s CUSS- and ABC-compatible: Thanks to the device’s compact size, rectangular form, and mounting points, Combo Smart Kiosk can be perfectly integrated into Common Use Self-Service (CUSS) and Automated Border Control (ABC) projects, such as passport control e-gates and self-service check-in kiosks. Moreover, it’s versatile enough to be used as a standalone unit at traditional check-in desks or in duty-free shops.
- It ALWAYS provides maximum performance: Despite not having any cover on top, Smart Kiosk always snaps perfect images of the examined IDs thanks to innovative features like Reflection Removal and Adaptive Light Control.
- It’s designed to last long: Scratch-resistant scanning surface and no moving parts guarantee that Combo Smart Kiosk units will last for many years, even during peak periods with hundreds and thousands of passengers being controlled every hour.
Would you like to know more about Adaptive Recognition’s Combo Smart Kiosk ID scanners and how they can be used for your airport-related project? Click here and enjoy smooth passenger flow made possible by this integrated, super-fast ID verification solution.
| Imaging | |
| Active scan area | 129 x 89 mm (5.08” x 3.5”) |
| Illumination sources | LED: visible white, IR (B900), UVA |
| Provided Images | Visible, IR, OVD image, glare-free image, UV image |
| Image formats | BMP, JPG, JPG2000, PNG |
| Image color depth | 24 bits/pixels [RGB, 8 bits/pixels (IR image)] |
| Reading Capability | |
| Automatic Document Detection (ADD) | YES |
| Reflection Removal (RR) | YES |
| Adaptive Light Control | YES |
| ICAO MRZ reading | ICAO compliant documents per ICAO 9303 specification Part 1, Part 1v2, Part 2, Part 3, and Part 3v2 for Type ID-1, ID-2, and ID-3 MRZ Optical Character Recognition |
| VIZ reading | Available with Adaptive Recognition VIZ OCR software |
| Barcode reading | 1D: UPC-A, EAN8, EAN13, Code39, Code128, ITF
2D: PDF 417, Data Matrix, QR Code, Aztec Code From paper-based documents and mobile devices AAMVA compliant PDF417 and IATA BCBP |
| RFID reading* | Reading and writing contactless ICs according to ISO 14443 Type A & B, BSI TR-03105
All standardized rates up to 848 Kbps |
| Programming & Interfaces | |
| Supported Operating Systems | Windows 8, 8.1, 10 + Linux (ask for details) |
| Software Development Kit (SDK) | Complete SDK including DLLs and demo programs |
| Programming languages | C/C++, C#, Visual Basic 6.0, Delphi, VB.NET, Java |
| General interfaces | Adaptive Recognition native, Twain, and Acuant AssureID |
| RFID functions (where applicable)** | ICAO Doc. 9303 LDS 1.7, ISO 18013 (Driver License)
PKI 1.1, BAC, EAC, EAC2.0, PACE, PACE-CAM, AA, PA, TA, CA, BAP, EAP |
| Status indicators | Four programmable status LEDs (blue, green, yellow, red) |
| Advanced Document Authentication
(included in standard SDK) |
Data consistency checks: MRZ, RFID*
R B900 and UV dull paper check, Bearer’s printed photo vs. RFID DG2* |
| Additional Authentication Options
(available as optional SDK) |
VIZ and non-ICAO document reading
Automated verification based on document-specific security features in visible white, IR, and UVA* |
| PC connection | USB 2.0 high speed (USB 3.0 compatible) |
| Firmware upgrade | Automatic, via USB |
| Mechanical and Other Data | |
| Size with passport fixer | 150 mm × 195 mm × 117 mm (5.90” × 7.67” × 4.60”) |
| Size without passport fixer | 150 mm × 195 mm × 108 mm (5.90” × 7.67” × 4.25”) |
| Weight | 1.01 kg (2.15 lbs.) |
| Operating temperature | 5 °C to 45 °C (45 °F to 113 °F) |
| Operating humidity | 0–90 % (non-condensing) |
| Power supply (V DC) | 12 V DC |
| Max. power consumption | 0.8 A / 9.6 W |
| Case housing | Sturdy ABS-PC plastic |
| Window glass | 5.5 mm (0.22”) normal glass |
| Programmable status LEDs | 3 |
| Compliances | FCC, CE, WEEE, RoHS |
| Maintenance | No moving parts, maintenance-free operation |
| Warranty | Three-year warranty, upgradeable |
