Einar ANPR Camera for Access Control and Parking

Description
Specifications

Build a parking system with no loops

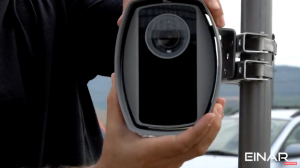

Einar is an easy-to-use yet powerful ANPR camera, an all-in-one tool designed for access control, parking, and slow traffic monitoring.

Thanks to its Plug’n’Play design, single PoE+ cable operation, and simple settings, Einar easily fits into your existing system.

Einar commands the opening of gates and barriers through a GPIO port connection.

Other advanced features include an onboard ANPR engine, software and hardware triggers, built-in IR, auto-adjustment for the optics, and memory expandability. Einar also supports our Carmen® ANPR Cloud with make and model recognition (MMR).

Main benefits

  • Camera, illumination, triggering, ANPR, list management, and gate control in one device
  • Plug & Play for easy installation and handling
  • Single interface to handle multiple cameras
  • Single PoE+ cable operation
  • Video included in the event package
  • Expandable memory via external SD card
  • Data security through HTTP, FTP, SFTP
  • Easy integration to VMS, parking, and ERP systems via ONVIF/API

Key features

  • Built-in PlateFinder trigger
  • 120 dB Wide Dynamic Range (WDR)
  • H.264 compression
  • Carmen® ANPR Cloud support
  • Easy-to-use GUI
  • ANPR and event displayed in same image
  • Playback and search functions
  • Allowlist support
  • Onboard plate recognition powered by Carmen®

Compact design, Standalone solution for access control

Image & video events, Motion detection and license plate-based triggering

On-board ANPR – >99% ANPR accuracy, Preinstalled or optional

Type of installation – Fixed, Plug-n-play

Power requirement – PoE+ (IEE 802.3at)

Power consumption – 5 W

ANPR range – 1.5-12m (Einar 5 & Einar 5W), 4.5-20m (Einar 5T)

Resolution – 5 MP

Lens type – 3-12mm, motorized focus/zoom (Einar 5 & Einar 5W), 9-22mm (Einar 5T)

Optical zoom – 2x (Telelens), 4x (Standard, White Illumination)

Shutter type – Rolling

Illumination wavelength – IR 850nm, Visible white

Illumination modes – Continuous

Processing unit for ANPR – 1.25 GHz + HW accelerator

Communication protocols – DHCP, DNS, HTTP, HTTPS, NTP, RTSP, SNMP, TCP/IP, UPnP

Connectivity – PoE+ RJ45 & GPIO

SD-card slot – User accessible

Carmen® ANPR

Optional

Video analytics

ANPR, Motion detector

Make & model recognition – No

Trigger – In-built video analytics (license plate-based triggering)

Operating temperature –  -30°C – +55°C (-22°F – +131°F), -30°C – +85°C (-22°F – +185°F)

IP Rating – IP67

Dimensions – 167 mm x 126 mm x 100 mm (6.57″ x 4.96″ x 3.94″)

Weight – 1.2 kg (2.6 lbs)

What is in the box? – Bracket, Camera, Ground terminal, IP67 RJ45 connector housing, Shield

Optional accessories – Optional GPIO cable
