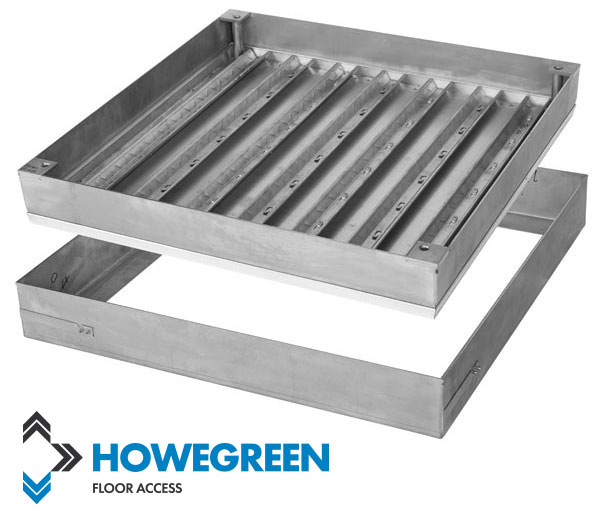

Howe Green 1050 Series Heavy-Duty Floor Access Cover
| Company | Howe Green |
|---|---|
| Product code | 1050 Series |
Images
Description
Specifications
The class-leading Howe Green 1050 Series Heavy-Duty Floor Access Covers are suitable for all use with thicker and hard-wearing floor finishes to enable permanent, safe access to services concealed underneath.
The 1050 Series is available in single, duct or multipart configurations for use in interior or exterior areas, with 6.5 tonne pneumatic tyre wheel load, FACTA C supplied as standard or up to 11 tonne pneumatic tyre wheel load, FACTA D (equivalent to D400) available on request. Manufactured in the UK and third party CERTIFIRE fire rated to BS 476 Part 22, all covers are made to your exact specification with no time or cost constraint.
Features / Benefits
- Made to your specification between stated maximum and minimum sizes, with no time or cost constraint.
- Quick and easy to install ensuring minimum disruption.
- Provides easy access to underfloor services using lifting keys.
- Any configuration of ducts and branches can be created to provide a tailor-made floor access solution.
- Third party CERTIFIRE fire rated to BS 476 Part 22 for stainless steel covers. Fire rated for 2 hours on integrity, and up to 2 hours on insulation depending on the floor access cover fill specification.
- Load rating 6.5 tonnes FACTA C supplied as standard or 11 tonnes FACTA D (equivalent to D400) available on request, to meet project requirements.
- Double sealed option provides the highest levels of hygiene and security.
Guide Specification Howe Green | 1050 Series
| MATERIALS | Stainless Steel with Steel baseplate and reinforcement |
| CLEAR OPENING | (Min-Max sizes) SINGLE: 150-900mm / DUCT: 100-900mm / MULTIPART: contact us* |
| FRAME SIZE | (Overall dimensions) Stainless Steel: clear opening plus 130mm |
| DEPTH | Overall depth 105mm |
| LIFTING POINTS | Corner as Standard (Inset/Barrel lifting points optional) |
| FIRE RATING | BS 476 – Part 22 for integrity and insulation (see FIRE RATING Notes) |
| *Notes | Due to the potentially complex design of multipart access cover layouts, Howe Green recommend early consultation with our Technical Department to achieve the most efficient and economical layout for the given installation. |
