Watersafe IP66 Series Hard Landscaping Floor Access Covers
| Company | Howe Green |
|---|
Images
Description
Specifications
The Howe Green WATERSAFE IP66 Rated Floor Access Covers are suitable for internal or external use providing discreet, safe and easy access to under-floor services in applications where water or dust ingress must be eliminated.

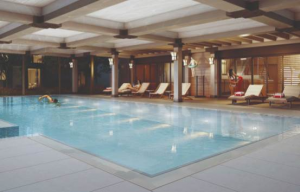

The standard range is available in galvanised steel or stainless steel options. Single WATERSAFE IP66 floor access covers, to bespoke sizes or shapes can be designed and made to order in the UK by our in-house team of experts to meet each project’s unique floor access requirements. Suitable for a wide range of applications from swimming pools, wet rooms and bathrooms to parks, hospitals, dock sides and rail projects.
Features / Benefits
- Made to your specification, to bespoke sizes or shapes, between stated maximum and minimum sizes.
- Quick and easy to install ensuring minimum disruption.

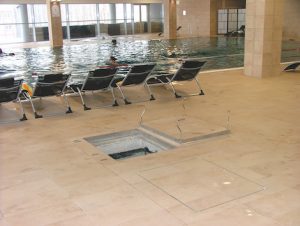

- Provides discreet, easy access to underfloor services using lifting keys
- Optional threaded inserts allow use of our Cover Skates lifting equipment.
Guide Specification Howe Green | Watersafe IP66
| MATERIALS | Stainless Steel or Galvanised Steel. Galvanised to BS EN ISO 1461 |
| CLEAR OPENING | SINGLE: maximum clear opening 1000 x 1000 mm, minimum clear opening 450 x 450 mm, outer frame at maximum 1200 x 1200 mm. Bespoke shapes and sizes made to order, please contact the office. |
| FRAME SIZE | (Overall dimensions) Stainless Steel or Galvanised Steel: clear opening plus 200mm |
| DEPTH | Overall depth 105mm |
| LIFTING POINTS | Triangular corner plates with standard barrel lifting points. Optional threaded inserts for use with Cover Skate lifting options |
| FIRE RATING | Non-fire rated |
| *NOTES | Howe Green recommends early consultation with our Technical Department to achieve the most efficient and economical layout for any given installation. |
