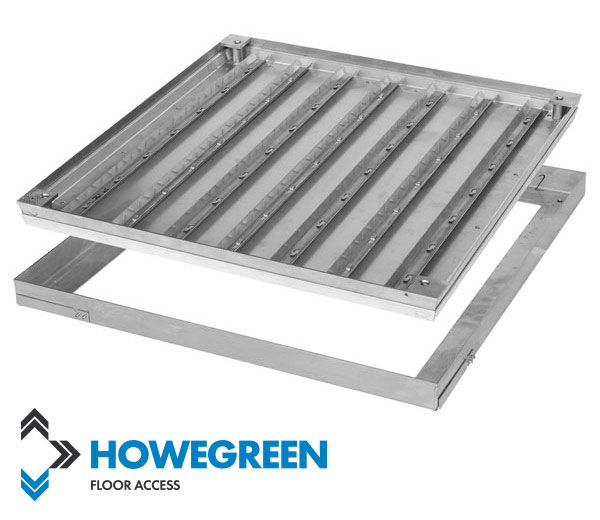

Howe Green 5000 Series Light-Duty Floor Access Cover
| Company | Howe Green |
|---|---|
| Product code | 5000 Series |
Images
Description
Specifications
The class-leading Howe Green 5000 Series Light-Duty Floor Access Covers are suitable for all use with all types of solid and hard flooring finishes to enable permanent, safe access to services concealed beneath the floor.
The 5000 Series is available in single, duct or multipart configurations for interior or exterior use in pedestrian-only areas. It is a non-fire rated floor access cover. Manufactured in in the West Midlands, all covers are made to your exact specification (between stated maximum and minimum sizes) with no time or cost constraint.
Features / Benefits
- Made to your specification between stated maximum and minimum sizes, with no time or cost constraint.
- Quick and easy to install ensuring minimum disruption.
- Provides easy access to underfloor services using lifting keys.
- Any configuration of ducts and branches can be created to provide a tailor-made floor access solution for your application.
- Double sealed option provides the highest levels of hygiene and security.
Guide Specification Howe Green | 5000 Series
| MATERIALS | Show-edge manufactured from Aluminium or Stainless Steel with Steel baseplate and reinforcement |
| CLEAR OPENING | (Min-Max sizes) SINGLE: 150-750mm / DUCT: 100-600mm / MULTIPART: contact us* |
| FRAME SIZE | (Overall dimensions) Aluminium: clear opening plus 120mm / Stainless Steel: clear opening plus 130mm |
| DEPTH | Overall depth 50mm |
| LIFTING POINTS | Aluminium: Inset as standard / Stainless Steel: Corner as standard (see Options) |
| *Notes | Due to the potentially complex design of multipart access cover layouts, Howe Green recommend early consultation with our Technical Department to achieve the most efficient and economical layout for the given installation. |
