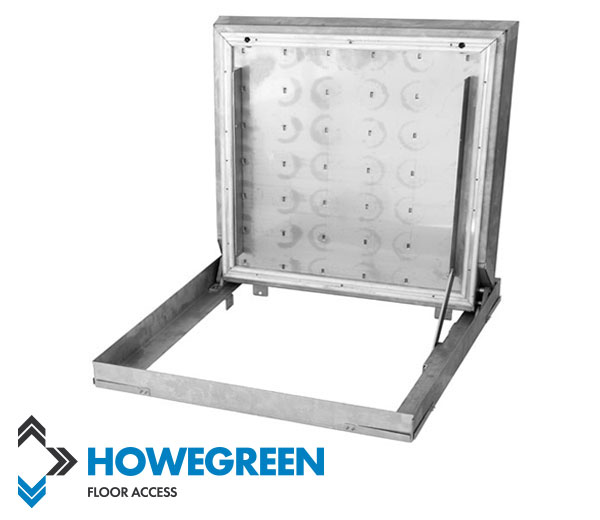

HSE 75 Series Hinged Floor Access Cover
| Company | Howe Green |
|---|
Images
Description
Specifications
The Howe Green HSE 75 Series Hinged Floor Access Cover is ideal where regular access is required to services concealed beneath the floor. A popular solution for basement areas and plant rooms and also in public buildings (railway stations for example), where regular access is required and Health and Safety of employees, and the general public is paramount.
Manufactured in the West Midlands, all covers are made to your exact specification (between stated maximum and minimum sizes) with no time or cost constraint.
Features / Benefits
- Made to your specification between stated maximum and minimum sizes, with no time or cost constraint.
- Any configuration of ducts and branches can be created to offer a tailor made floor access solution.
- Access hatches can be linked together to provide continuous access to ducts.
- Quick and easy to install ensuring minimum disruption.
Guide Specification Howe Green | HSE 75
| MATERIALS | Show-edge manufactured from Aluminium or Stainless Steel with Steel baseplate and reinforcement. |
| CLEAR OPENING | (Min-Max sizes) 550mm-1000mm |
| FRAME SIZE | Overall dimensions: Aluminium: (visible top edge) = clear opening (hinge side) plus 120mm x clear opening (front to back) plus 133mm* / Stainless Steel: clear opening plus 147mm |
| DEPTH | Overall depth 75mm |
| Notes | *Example: Aluminium: 600mm x 600mm clear opening equates to 733mm x 720mm overall top of frame size |
