Landscape 1000 Series Hard Landscaping Floor Access Covers

Description
Specifications

The Howe Green Landscape 1000 Series Floor Access Covers are suitable for all external hard landscaping projects to enable permanent, safe and easy access to services concealed underneath and combine first-class performance with affordability.

The value engineered, Landscape 1000 Series is available in single, duct or multipart configurations for use in exterior commercial landscaping areas up to a load rating of FACTA A – B as standard, and load ratings are achieved without the need for structural infill. Higher FACTA ratings can be manufactured on request. Manufactured in the UK, this range is available in galvanised or stainless steel options.

Features / Benefits

  • Made to your specification between stated maximum and minimum sizes.
  • Quick and easy to install ensuring minimum disruption.
  • Provides easy access to underfloor services using lifting keys.

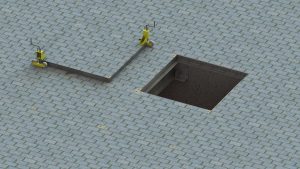

  • Optional threaded inserts allow use of our Cover Skates lifting equipment.
  • Any configuration of ducts and branches can be created to provide a tailor-made landscaping floor access solution.

Further Information

Guide Specification Howe Green | Landscape 1000 Series

Materials Stainless Steel or Galvanised Steel. Galvanised to BS EN ISO 1461
Clear Opening SINGLE: maximum clear opening 900 x 900 mm, minimum clear opening 450 x 450 mm, outer frame at maximum 1100 x 1100 mm. Bespoke shapes and sizes made to order, please contact the office.
Frame Size (Overall dimensions) Stainless Steel or Galvanised Steel: clear opening plus 130mm
Depth Overall depth 105mm
Lifting Points Triangular corner as standard, unsecured as standard. Optional secured covers, optional threaded inserts for use with Cover Skate lifting options
Fire Rating Non-fire rated
*NOTES Due to the potentially complex design of multipart access cover layouts, Howe Green recommend early consultation with our Technical Department to achieve the most efficient and economical layout for the given installation.
