IWA 14-1 Super Shallow Bollard – HVM Crash tested

Company Avon Barrier
Product code Avon SSF100 Resilience Bollard

Images

Description
Specifications

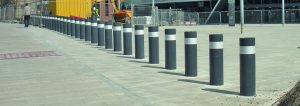

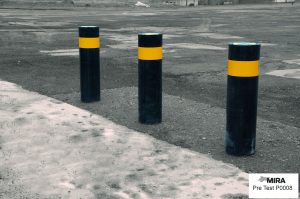

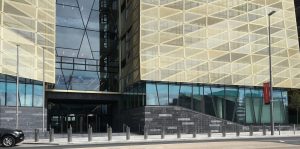

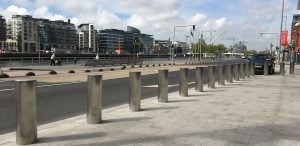

Super Shallow IWA 14-1 Bollard, installed quickly, no need for deep foundations therefore less disruption during installation. The Avon Resilience SSF100 Bollard is an impact tested super shallow foundation bollard, designed to provide stand-off hostile vehicle protection for infrastructure without the need for deep foundations.

With a structural foundation depth of just 100mm, the bollard offers the shallowest of foundations, whilst still providing a high level of protection against aggressive vehicle attack.

The bollard can be customised to blend into surrounding environments, with a variety of sleeve options, including stainless steel and ornate finishes. Ground finishes can include concrete, tarmac, block paving or crushed stone.

Features & Options:

  • Physically impact tested to IWA 14-1:2013
  • Unobtrusive in appearance
  • Super shallow foundation
  • Alternative sleeve options
  • Modular design
  • Stainless Steel Sleeves
  • Removable Option
  • Bespoke ornate sleeves
  • DDA Compliant Banding
  • Dome / Mitre / Flat tops
Scimitar 75/50
Bollard Diameter: Tube diameter  273mm
Bollard Height 1 metre (above ground level)
Full IWA 14-1 Classification:   V/7200(N2A)/64/90:4.9
Foundation Depth: 100mm

(Category B Depth <0.5m below
ground level)
