ARIA 5000 Series Ceiling Panels Non Fire Rated

Company Profab Access

Images

Description
Specifications

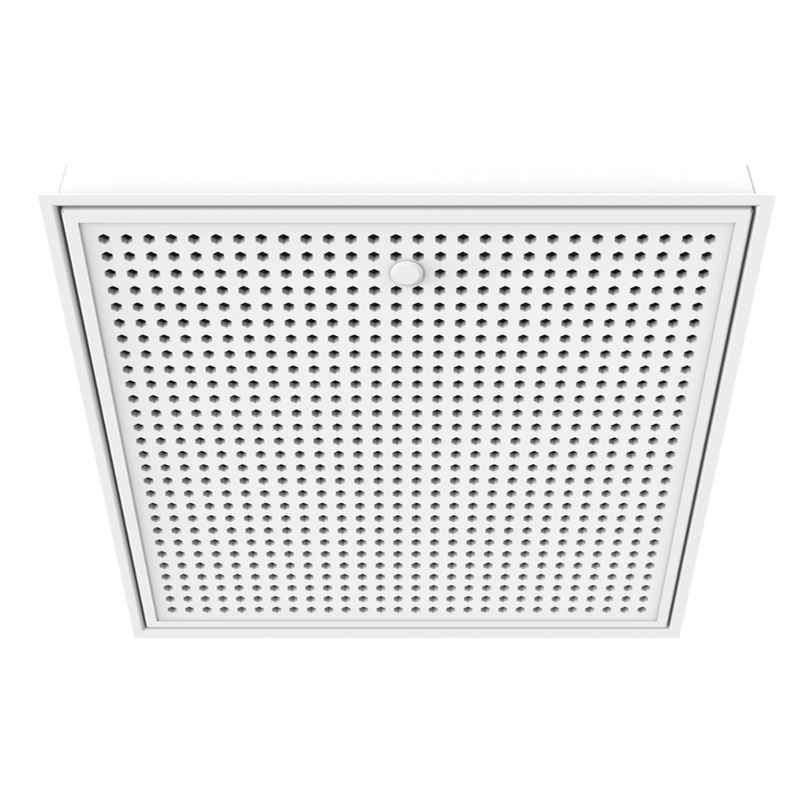

The ARIA 5000-NFR is a ceiling access panel and hatch designed to provide permanent access through ‘lay-in’ mineral fibreboard tile grid ceilings to mechanical and electrical services concealed above.

Specify locking options to suit your application.

Features / Benefits

COMPOSITION

The welded metal frame holds a metal door tray designed to accept the same selected ceiling tile as in the surrounding ceiling. The door is hinged via fully adjustable concealed hinges to one side.

Panels are manufactured to suit exact tile modules, either as 600mm or as 1200mm, square or rebated (tegular) edge and 24mm or 15mm wide tee grid systems.

The door opens down towards the user and can be removed during installation or if damage occurs.

Guide Specification ARIA 5000 SERIES – NON FIRE RATED

MATERIAL Frame 1.2mm / Door 0.9mm thick electro-galvanised mild steel.
SIZES Panels are manufactured to suit exact tile modules, either as 600mm or as 1200mm, square or rebated (tegular) edge and 24mm or 15mm wide tee grid systems.
DOOR CONFIGURATION Single Door only
FRAME EDGE Concealed frame edge
FRAME DEPTH Overall frame depth – 80mm
FINISH White powder coated frame and door (unless specified at time of ordering)
Notes For technical assistance, please contact our Technical Department on +44 (0)1827 719051
