Echo 7000 Series Ceiling Panels NON FIRE RATED
| Company | Profab Access |
|---|
Images
Description
Specifications

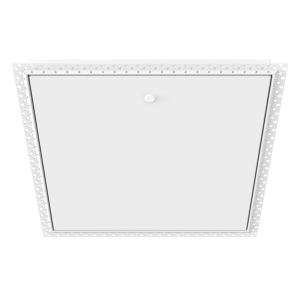

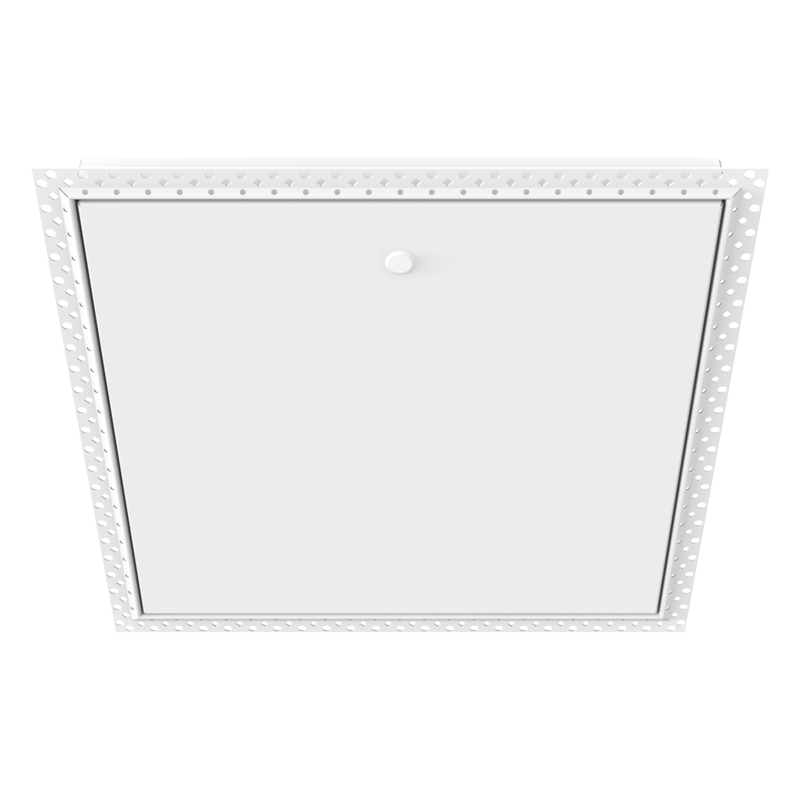

The ECHO 7000 SERIES NON FIRE RATED is a hinged discreet ceiling access panel with a good performance acoustic rating, typically specified for high end residential and hotel construction projects.
This product has a standard acoustic rating of 21dB, and can be upgraded to achieve an acoustic rating of 33dB with a budget lock. If specified with a push catch lock for a seamless aesthetic finish, an upgraded acoustic rating of 31dB or 34dB can be achieved.
Features / Benefits
COMPOSITION
The welded metal frame holds a metal door tray that is hinged via fully adjustable concealed hinges and is held closed by either a budget lock or a security key lock.
- The door opens down towards the user. It can be removed to aid installation or if damage occurs
- A constant door gap is maintained between the door and frame by the fully adjustable hinge and dome location system
- Simple means to provide horizontal ceiling access to building services
- Clean, discreet design with flush metal door for an aesthetic finish
- Supplied with concealed lock or push catch operation
- Acoustic shielding of 21dB and standard with options to upgrade to 31dB, 33dB or 34dB
- Single, double or multi-leaf door configurations
- Frequently specified in high end residential and hotel projects
- Fully recyclable at end of life.
Guide Specification ECHO 7000 SERIES – NON FIRE RATED
| MATERIAL | Frame 1.2mm / Door 0.9mm factory welded, electro-galvanised mild steel |
| DOOR CONFIGURATION | Single door (SD) Double Door (DD) or Multi Door Continuous Access (CA) configurations available. Please consult our technical department for advice. |
| FRAME EDGE | Beaded frame (BF) / Picture frame (PF) (See OPTIONS) |
| FRAME DEPTH | Overall frame depth – 86mm |
| FINISH | Fully powder coated white matt RAL 9010 to frame and door |
| STRUCTURAL OPENING | X and Y dimensions are external frame sizes. Structural opening required for installation is (X+5) x (Y+5) |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051 |
Other Products From Profab Access
PRIMA 1000 Series Access Panels FIRE RATED (up to 2hrs)
The PRIMA 1000 SERIES fire rated flush metal access panel provides simple access through fire rated wall and ceiling partitions where access to concealed services is required.
Suitable for vertical or horizontal use, the access panels …
INTEGRA 4000 Series Riser Doors FIRE RATED (up to 2hrs)
With ADJUSTABLE FRAME
The INTEGRA 4000 SERIES FIRE RATED riser door provides permanent, safe and discreet access to electrical and other services located within the riser shaft of the building. Provided as standard with our patented …

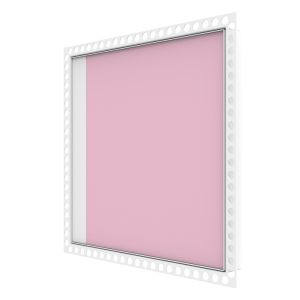

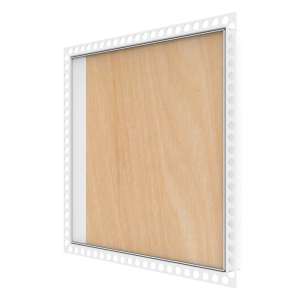

VISION 8000 Series Riser Doors FIRE RATED (up to 2hrs)
The VISION 8000 FR SERIES is a fire rated, high quality concealed riser door, designed to provide a simple yet secure permanent means of accessing building services, where the facade of the door can be …

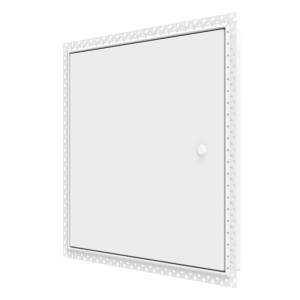

PRIMA 1000 Series Access Panels NON FIRE RATED
