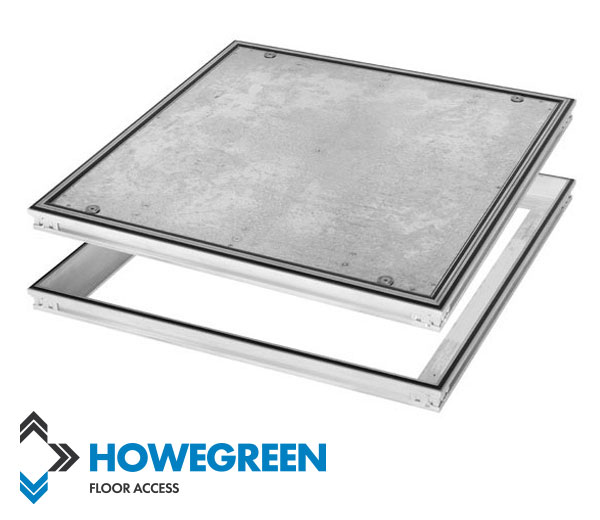

Howe Green Visedge Series Flexible Floor Access Cover

Description
Specifications

The Howe Green Visedge Series Floor Access Covers are suitable for all types of flexible floor finish including vinyl, linoleum, rubber and some carpets to enable permanent, safe access to services concealed underneath.

The Visedge Series is an Aluminium access cover suitable for use with flexible floor coverings in commercial locations where cleanliness, hygiene and durability are paramount. Manufactured in the UK, all covers are made to your exact specification.

Features / Benefits

  • Made to your specification, between stated maximum and minimum sizes, with no time or cost constraint.
  • Any configuration of ducts and branches can be created to offer a tailor-made floor access solution.
  • Quick and easy to install ensuring minimum disruption.
  • Double sealed option provides the highest level of hygiene and security.
  • A tough, lightweight, non-rusting access cover solution.
  • Crimped corners allow the access cover and frame to lie flush with the flooring.
  • Available with a top edge seal to help prevent dirt and water ingress.
  • Weldable PVC securing edge enables the frame section to be bonded and welded to the cut edge of the sheet flooring to form an impermeable, flat, hygienic and permanent joint.
  • Provides permanent, easy access to underfloor services using lifting keys.

Further Information

Guide Specification Howe Green | Flexible Floor

MATERIALS Aluminium frames with Steel base plates, reinforcement and securing bolts
CLEAR OPENING Min-Max sizes: 150x150mm – 1000x1200mm
FRAME SIZE (Overall dimensions) Aluminium: clear opening plus 137mm
DEPTH Overall depth 50mm
LIFTING POINTS Inset
