IMAGE 2000 Series Access Panels NON FIRE RATED
| Company | Profab Access |
|---|
Images
Description
Specifications

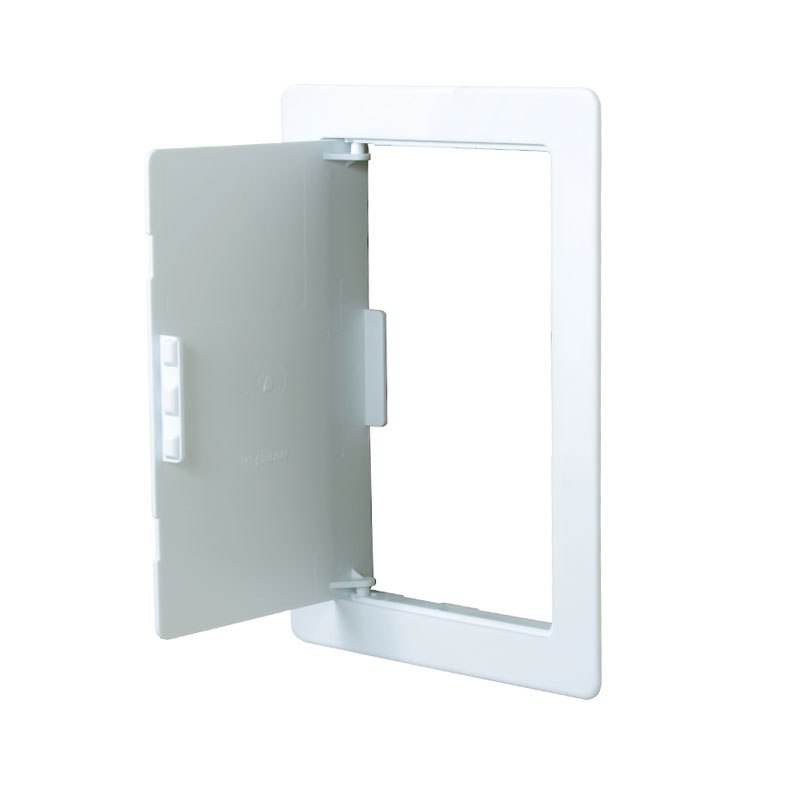

IMAGE 2000 Series non-fire rated plastic access panels provide a quick-fix solution, where simple, un-hindered access is required to building services including valves, plumbing or switches without the need for security.
Ideally suited to domestic or residential construction projects, this multi-functional access panel is suitable for new-build applications or retrofitting after remedial work.
Features / Benefits
COMPOSITION
The plastic access panel has an integral push-in door catch, easily opened with a flat head screw driver.
- Economic, plastic access panel

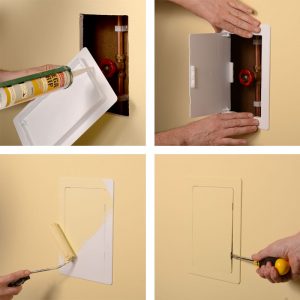

- Simple and fast to install
- Lightweight
- Non-locking solution
- Picture frame covers rough aperture
- Integral push-in door catch
- Clip-in removeable door
- Door easily opened with a flat head screwdriver
- Lightly textured surface for painting over if required.
Guide Specification IMAGE 2000 SERIES – NON FIRE RATED
| SUITABILITY | Suitable for vertical or horizontal use into walls and ceilings. |
| MATERIAL | Injection moulded high impact white serene plastic |
| DOOR CONFIGURATION | Single Door (SD) |
| FRAME EDGE | Picture frame (PF) |
| FRAME DEPTH | Overall depth – 21mm with the door in the closed position. In the open position, add 8mm along hinge side. |
| FINISH | Finished in self-colour white, lightly textured for decorating on site. |
| LOCK | This is a non-locking access panel. Easily opened with a flat head screwdriver. |
| STRUCTURAL OPENING | Structural Opening requirement for installation should be 6-8, larger than the panel size selected. |
| CLEAR OPENING | Clear available access once installed, with door in the fully open position is (X-32) x (Y-12) |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051. |
