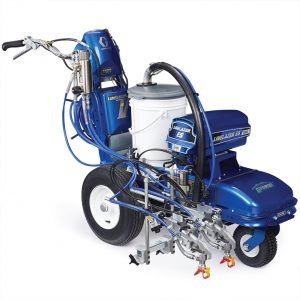

LineLazerTM ES2000/1000 Battery Powered Airless Line Striper

Company GRACO BVBA
Product code 25M228 / 25N561 / 25N562

Images

Description
Specifications

Only Graco offers a complete line of electric striping solutions designed to deliver quiet, fume-free performance on indoor jobs, and the power to tackle large outdoor applications.

Graco’s LineLazer® ES 1000 is the industry’s first professional battery-powered airless line striper that delivers power and performance without engine exhaust or noise. The LineLazer ES 2000 extends the lifetime up to 200 liters per charge and is also available as a High-Production series striper as well.

It is a true technology breakthrough for Airport Maintenance Teams and Airport Striping Contractors who want to expand their activities to indoor, limited noise or populated-area applications with a quiet, clean alternative power source without sacrificing performance. Ideal for indoor and outdoor airport applications, the LineLazer ES 2000/1000 replaces high-cost manual taping and paint marking methods.

Benefits for Standard Series:

  • No Engine noise, vibration and exhaust fumes
    • Complete any job at any time without production shutdowns or disruptions
    • Reduce user fatigue while delivering perfect lines on all indoor and outdoor
  • Quite, reliable power
    • Maintenance-free two sealed deep-cycle 12V 100Ah AGM battery
    • Stripe immediately up to 200 liters per change
  • LiveLook™ Display with SmartControl™ (ES2000 only)
    • Track, measure and control every aspect of your job
    • Real-time information for the perfect lines

More Information:
www.graco.com/striping
https://www.graco.com/gb/en/products/product-families/linelazer.html

  • Max Flow:
    • 2.3 lpm / 0.6 gpm (ES1000)
    • 4.1 lpm / 1.1 gpm (ES2000)
  • Max Pressure: 227 bar / 3300 PSI
  • Battery Power:
    • 12V 100Ah Deep Cycle AGM Battery (ES1000)
    • 2x 12V 100Ah Deep Cycle AGM Battery (ES2000)
  • LineDriver optional: Double your performance by adding a LineDriver ES
