PRIMA 1000 Series Access Panels NON FIRE RATED

Company Profab Access

Images

Description
Specifications

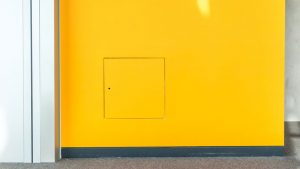

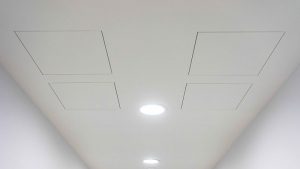

The PRIMA 1000 SERIES NON FIRE RATED (NFR), lockable steel access panel provides simple, economic access in jointless plaster / plasterboard wall / partitions and suspended ceilings, where permanent, discreet access to concealed mechanical and electrical services is required.

Entry level access panels suitable for vertical use. Frame edge options to suit application. Plasterboard and Metal door options available.

Features / Benefits

COMPOSITION

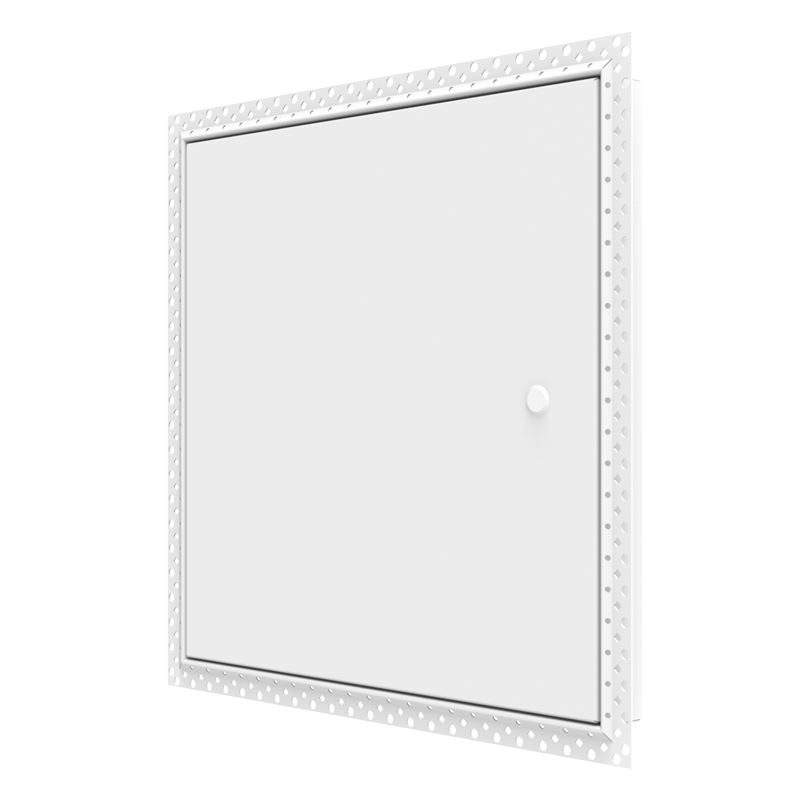

The metal frame holds a flush metal or plasterboard faced door through a simple concealed pivot hinge device. The door is held closed with a concealed budget lock (BL) which opens towards the user.

  • Lightweight, flush metal door with aesthetic finish
  • Doors are removable if damage occurs or during installation
  • Panels are supplied with simulated dry wall beaded frames (BF) and decorated on site to match the colour and texture of adjacent finish
  • Concealed budget lock with a white, round bung
  • A constant 2mm gap is maintained between the door and frame by the ‘dome location’ system.
  • Single door (SD) or double dor (DD) configurations
  • Fully recyclable at end of life

A range of stock sizes (see below) are available for next day delivery or access panels are made to order.

Guide Specification PRIMA 1000 SERIES – NON FIRE RATED

SUITABILITY Suitable for vertical or horizontal use for install prior to plastering. Supplied primed and ready to take a painted finish.
MATERIAL Frame 1.2mm / Door 0.9mm thick electro-galvanised mild steel.
DOOR CONFIGURATION For multi-door configurations, please contact our Technical team.
FRAME EDGE Beaded frame (BF) or Picture frame (PF) options.
FRAME DEPTH Overall depth – 34mm (a further 7mm at localised budget lock position)
FINISH White powder coated frame and door to RAL 9010M (Matt finish)
LOCK Budget lock (BL) / Concealed push catch (PC) / Security key lock (SL)
CLEAR OPENING Clear available access once installed, with door in the open position is (X-55) x (Y-40)
STRUCTURAL OPENING X and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+5) x (Y+5).
Notes For technical assistance, please contact our Technical Department on +44 (0)1827 719051.
