SPIRA 6000 Series Ceiling Panels NON FIRE RATED
| Company | Profab Access |
|---|
Images
Description
Specifications

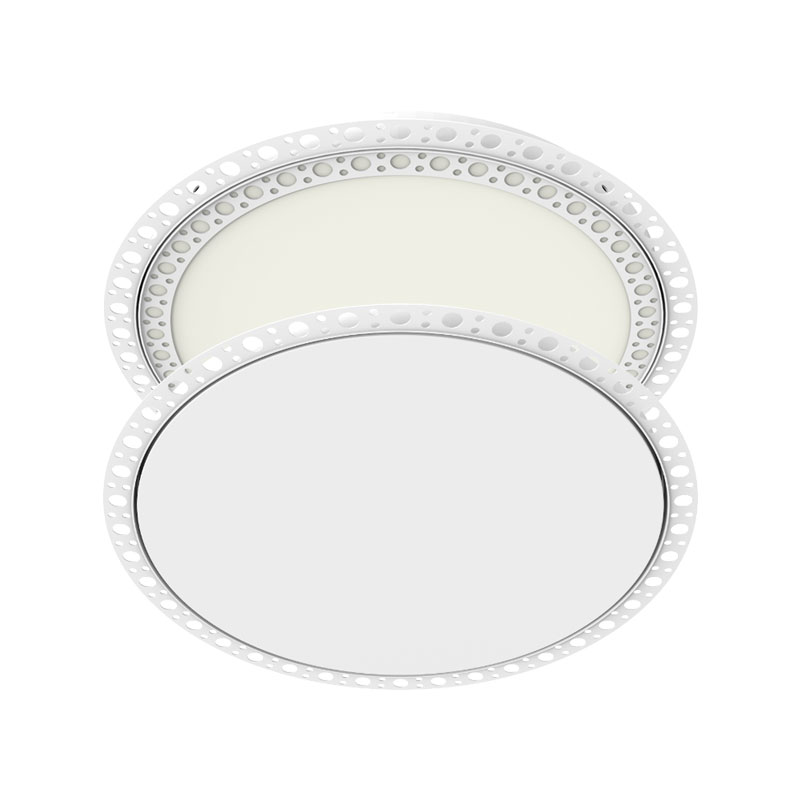

The SPIRA 6000 SERIES – NON FIRE RATED circular metal frame and door access panel provides a permanent, discreet and decorative solution for accessing mechanical and electrical services through jointless plaster or plasterboard ceilings.
All SPIRA 6000 Series panels are made to your specification.
Features / Benefits
COMPOSITION
The metal frame holds a metal faced door through a bayonet lock retaining system. This system allows the door to be removed during installation or if damage occurs.
- Fast and simple to install
- Twist open and close door mechanism
- Suitable for use in suspended ceiling systems
- Metal or plasterboard door options
- Single door (SD) configuration
- Available in sizes from 200mm to 600mm diameter
- Etched powder coated white for decorating on-site to match adjacent finishes
- Fully recyclable at end of life
- Range of stock sizes for next day delivery
Guide Specification SPIRA 6000 SERIES – NON FIRE RATED
| SUITABILITY | For internal use only in areas of normal humidity |
| MATERIAL | Frame 1.2mm / Door 1.2mm thick aluminium |
| DOOR CONFIGURATION | Single circular door only |
| FRAME EDGE | Beaded frame (BF) / Picture frame (PF) (See OPTIONS) |
| FRAME DEPTH | Overall frame depth – 35mm metal door / 45mm plasterboard door |
| FINISH | Fully powder coated white matt RAL 9010, suitable for finishing on site |
| STRUCTURAL OPENING | Diameter dimensions are outside frame sizes. Structural Opening requirement for installation is (Diameter + 5) |
| CLEAR OPENING | Clear available access when installed, with door in open position is (Diameter -40) |
| QUALITY | CNC manufactured in the UK to ISO 9001:2015 |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051 |
