nnounce Amplifiers
| Company | Simpleway |
|---|---|
| Product code | AMP4, AMP4LS |
Images
nnounce amplifiers are the network audio amplifiers that drive an airport’s public address speakers. They are the power stage of the nnounce audio line: the announcement software creates the message, and the amplifier delivers it to the speakers with built-in processing and security. There are two models, the ampnode4 for flexible everyday amplification and the ampnode4LS for life-safety and mission-critical use.
Key benefits:
- The ampnode4 delivers 600W total across four channels in a compact half-rack unit, with power sharing so you allocate power to channels however the installation needs
- The ampnode4LS delivers 4 by 500W with redundant power supplies and spare-channel switching, built for life-safety applications that cannot go down
- Both connect over standard network audio, AES67, RTP, and VoIP, with optional AES256 encryption to keep audio streams private
- Powerful built-in DSP with a web-based pipeline designer, plus a hardware neural engine for applications like gunshot detection and speech-to-text
- Q-SYS library verified and Bosch PRAESENSA compatible, with plugins for setup, control, and monitoring
- Cloud-connected and ready to use with Simpleway CX out of the box
How it works:
Both amplifiers are built on the nnounce secure and scalable audio platform, which receives continuous feature and security updates. They take networked audio and amplify it to the connected speaker zones, with built-in signal processing that exceeds what a separate DSP would provide, so you need fewer boxes in the rack.

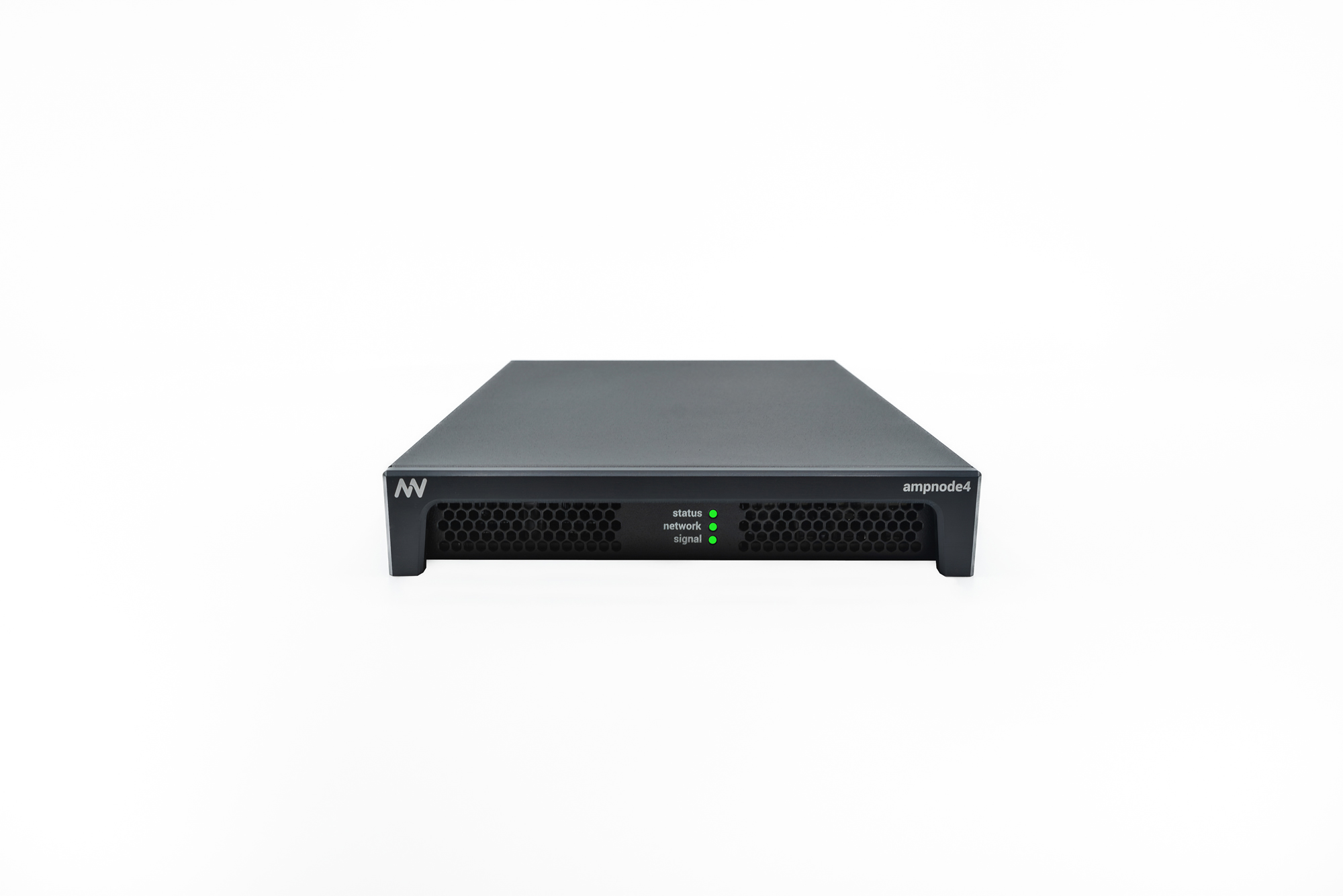

The ampnode4 is the flexible workhorse. Its 600W total output shares across four channels, with up to 500W to 600W assignable to a single channel, and an auto-setup routine optimizes settings for your speakers.
The ampnode4LS is built for when audio cannot fail. It provides four channels at 500W each, can bridge channels in pairs for up to 2000W total, and includes redundant power supplies and spare-amplifier channel switching for continuous operation. Its auxiliary bus connects low-cost mic stations and controllers, and its phantom-powered inputs can drive ambient noise sensing microphones. Both models carry secure boot, encrypted firmware, and tamper sensing.
ampnode4 (Order ID: AMP4)
- Power: 600W total, 4 channels with power sharing; up to 500W@100V, 600W@70V, 600W@8Ω to a single channel
- Audio: 24-bit / 48 kHz; max output 7.6 Vrms; 2.5 ms end-to-end latency in AES67
- Connectivity: 4 output channels, 4 balanced inputs, 4 control inputs, 1 control output, USB-C, 2× LAN RJ45 1000 Mbps
- DSP: web-based graphical pipeline designer, 60+ component library, API library
- Network audio: AES67, RTP, VoIP; AES256-GCM encryption
- Security: secure boot, encrypted firmware, tamper sensing
- Compatibility: Q-SYS, Bosch PRAESENSA
- Power: 100–240 VAC, 50–60 Hz
- Dimensions: 212 × 292 × 40 mm; 2.7 kg (1U half-width)
- Storage: onboard microSD, 64 GB card included
ampnode4LS (Order ID: AMP4LS)
- Power: 4 × 500W; bridgeable in pairs up to 2000W total (1000W per pair)
- Audio: frequency response 20 Hz–20 kHz (±0.5 dB); SNR >100 dB A-weighted
- Connectivity: 4 powered outputs, powered backup channel in/out, 4 auxiliary bus ports (line, mic with 24V phantom, or control), relay output, USB-C, 2× LAN RJ45 1000 Mbps
- Redundancy: dual redundant power supply, spare-amplifier channel switching
- Inputs: phantom power for ambient noise sensing microphones
- DSP, security, compatibility: as ampnode4 (pipeline designer, secure boot, encrypted firmware, tamper sensing, AES256 for AES67)
- Power: 90–264 VAC autoselect, PoE, or 48V DC; 55W idle, dynamic scaling, deep-sleep on PoE; forced-air cooling
- Dimensions: 432 × 310 × 45 mm; 5 kg (1U)
