Touchscreen Microphone Stations (micnode2h/g)

Description
Specifications

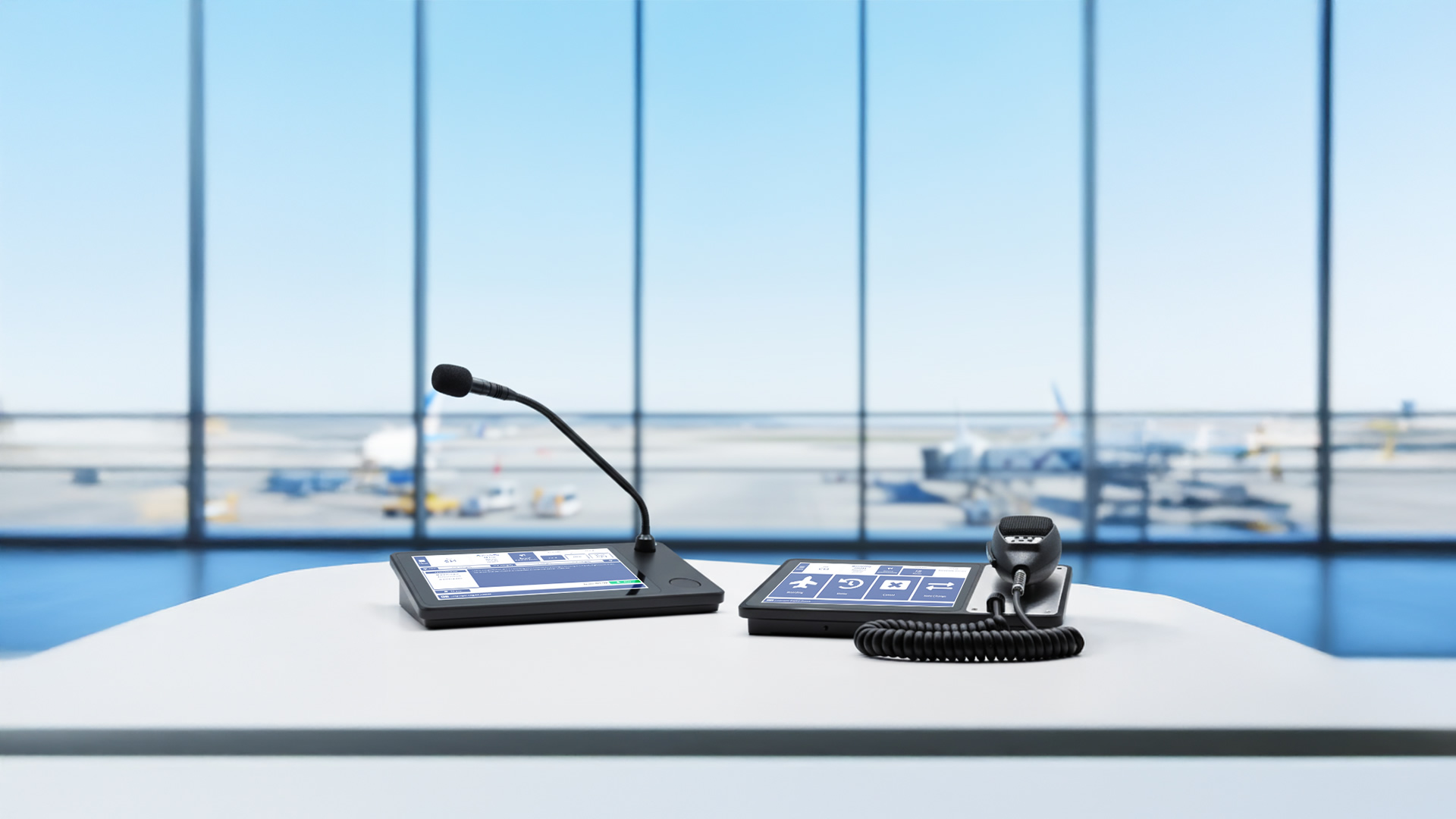

nnounce touchscreen microphone stations put a full paging interface at the gate or the operator desk. Each station has a built-in touchscreen showing flight information and announcement controls, so staff can play a preconfigured announcement at one touch or page live through the microphone. They come in two variants: the micnode2h with a handheld push-to-talk microphone, and the micnode2g with a gooseneck microphone and a push-to-talk button.

Key benefits:

  • A touchscreen station with flight information and one-touch announcements right at the gate
  • Choose a handheld microphone (micnode2h) or a gooseneck microphone (micnode2g)
  • Play preconfigured multilingual announcements at one touch, or page live
  • A built-in neural engine powers on-device text-to-speech and speech-to-text
  • Runs Airport CX, third-party HTML5 applications, or a Q-SYS UCI on the same screen
  • Q-SYS library verified, with built-in security

How it works:

The station is an all-in-one passenger communication device that removes the need for a separate paging workstation. It comes ready for daily operations with your announcements, languages, and predefined zones already set up. When integrated with Airport CX, staff can start flight-related voice announcements at a boarding gate or any assigned location, and the displays update to match. Role-based interfaces such as GateUI show each operator only the flights and zones they need.

The built-in touchscreen runs Simpleway CX, third-party HTML5 applications, or a Q-SYS user control interface, so one device can serve several roles. A hardware neural engine handles text-to-speech and speech-to-text on the station itself, which supports live announcement capture and translation. The stations are built on the nnounce platform with open standards and built-in security, and they can be extended to secondary locations with the micnode aux accessory microphone.

  • Order IDs: MICH2 (micnode2h), MICG2 (micnode2g)
  • Variants: micnode2h (handheld push-to-talk microphone), micnode2g (gooseneck microphone with push-to-talk button)
  • Display: 8-inch capacitive touchscreen, 1920 × 1200; web-based interface; cloud-connected
  • User interface options: built-in UI, Simpleway CX applications, third-party HTML5 applications, or Q-SYS UCI
  • On-board processing: built-in DSP with web-based graphical pipeline designer, 60+ component library, extended-precision fixed-point processing, API library; hardware neural engine for text-to-speech and speech-to-text
  • Audio: 24-bit / 48 kHz AD (125 dB-A) and DA (115 dB-A) converters; max output 1.44 Vrms; 2.5 ms end-to-end latency; AES67 network audio with optional encryption
  • Connectivity: 1× front-panel microphone input, 1× rear aux microphone station input, 2× balanced audio outputs, 2× protected GPIO, 2× LAN RJ45 1000 Mbps with PoE
  • Network audio: AES67, RTP, VoIP
  • Compatibility: Q-SYS, Bosch PRAESENSA
  • Security: secure boot, encrypted firmware, tamper sensing, AES256-GCM encryption for AES67
  • Storage: onboard microSD slot, 64 GB card included
  • Power: IEEE 802.3af PoE; typical 8 W, max 15 W
  • Environmental: operating 0°C to +50°C; storage -10°C to +60°C
  • Expansion: micnode aux4 accessory microphone station (optional)
