Digital Display Controller
| Company | Simpleway |
|---|
Images

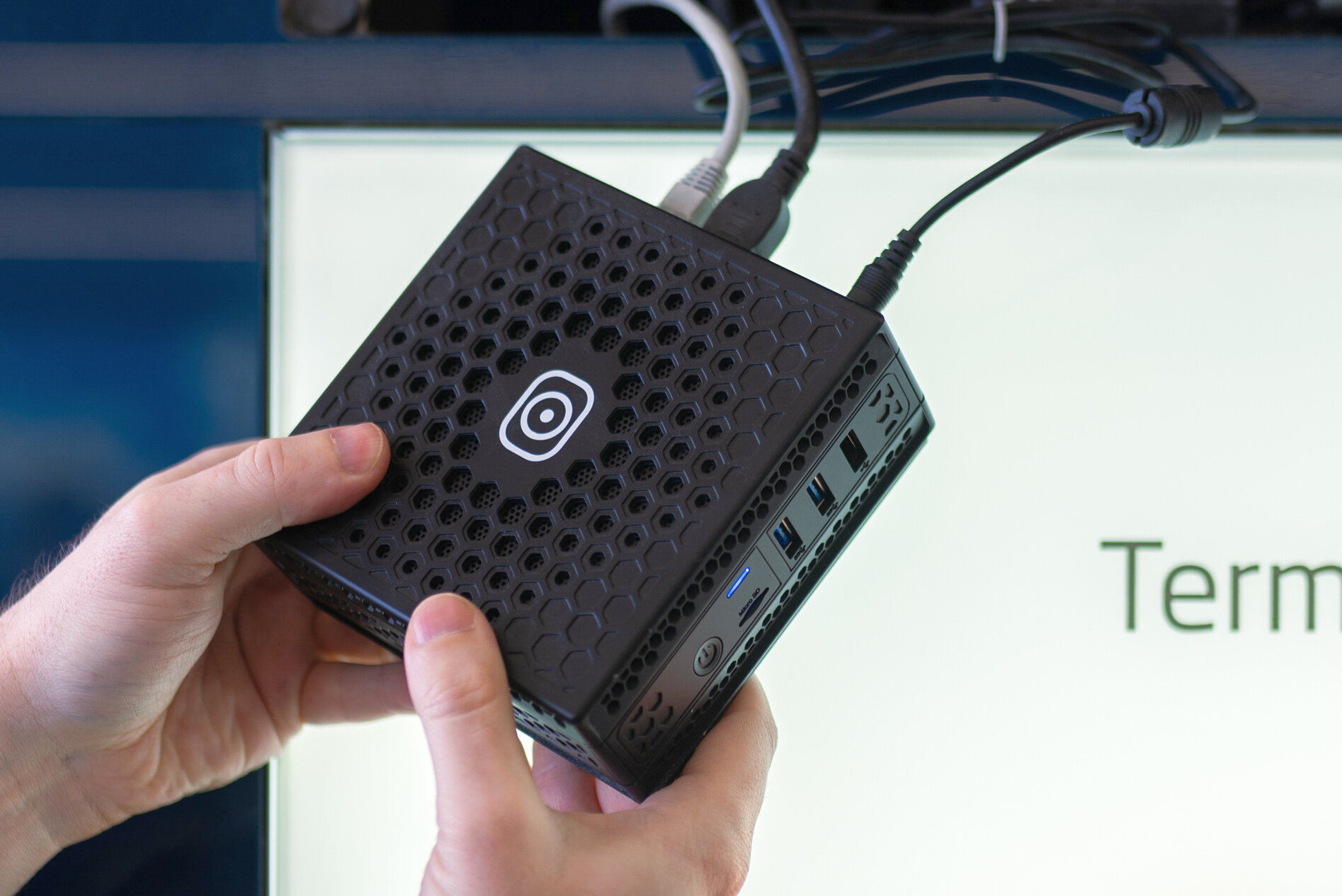

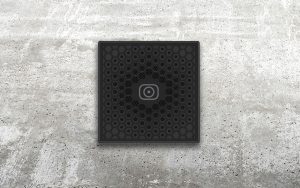

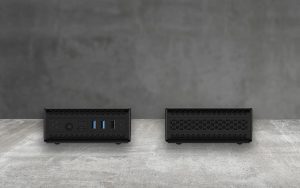

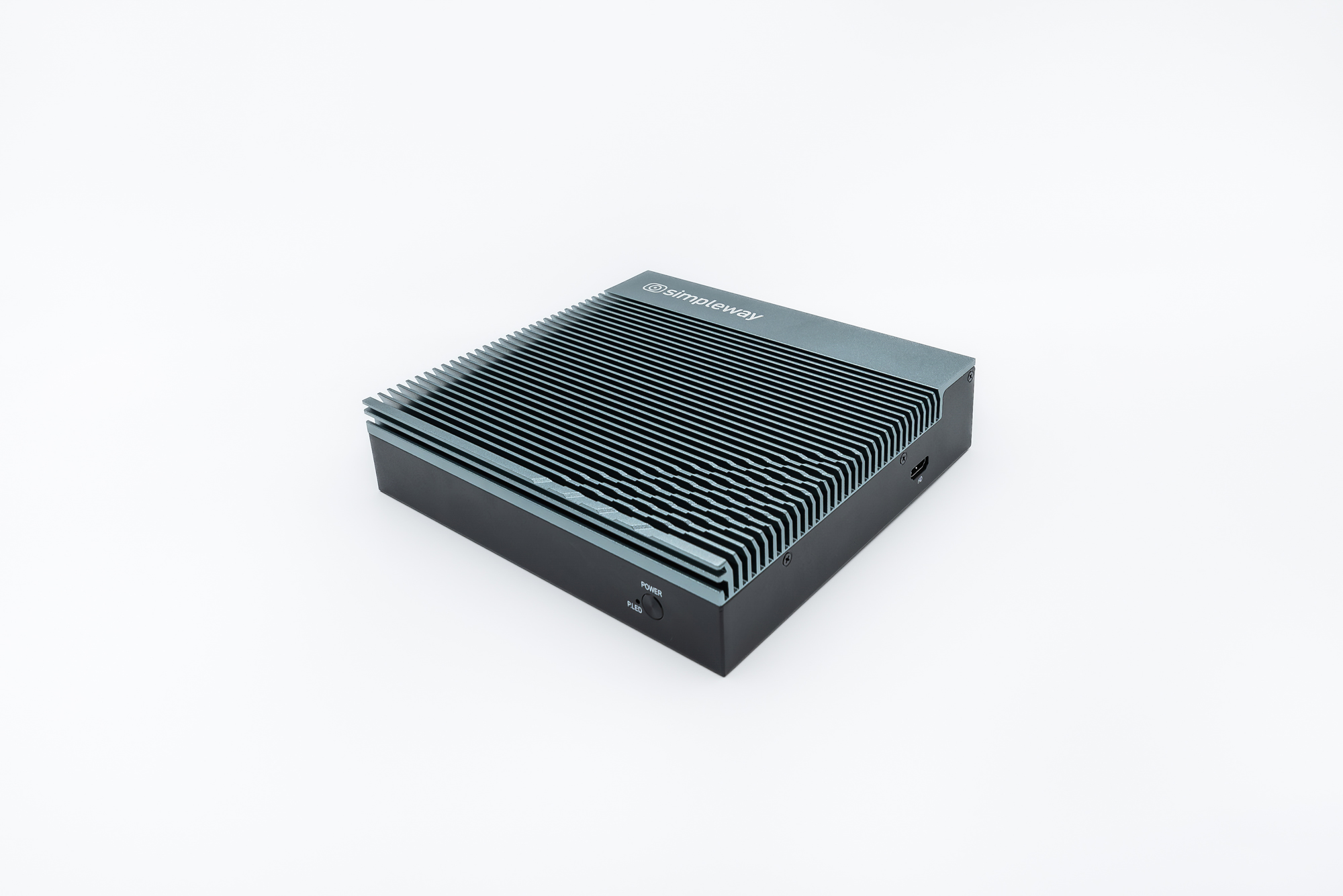

Ultimate Performance Rendering Device Gen3 – Media Player for Digital Signage
Would you like to deliver real-time multimedia content to your customers with just one affordable, compact, and widely compatible device? Save your worries, money, and space with our Media Player Device.
Building on our extensive experience, we at Simpleway designed a 3rd generation high video performance media player for heavy-duty operations. This affordable entry-level digital device is designed to deliver dynamically changing rich-media content with a resolution up to 4K (4096×2304@60hz) to any digital signage hardware. All this without network bandwidth issues or content delays. On top of that, its ultra-compact fanless design with VESA mount possibility saves you space and integrates seamlessly into your local network.
Key benefits
- Controls any digital signage hardware via HDMI
- High performance, robustness and reliability
- Fanless cooling with a low power consumption
- Able to play up to 4K resolution content
- Small footprint for simple integration
- Easy maintenance and monitoring
OS
• Windows 10
Memory
• 4 GB DDR4 2133 Mhz
Video
• Intel Gen9 UHD 600
CPU
• Intel Celeron J4105 4×1.5 Ghz (2.5 Ghz turbo) 10 W TDP
Storage
• 64 GB SSD
LAN
• 10/100/1000 MB Realtek
Connectors
• 2x USB 3.0, 2x USB 2.0, Audio Line Out, 2x HDMI 2.0
Security
• Kensington lock
Power adapter
• Power: 36 W
• Input voltage: 80 ~ 264 V AC, 113 ~ 370 V DC • Output voltage: 12 V
• Output current: 3 A
Weight
• 550 g
Dimension
• 127 mm x 127 mm x 55 mm
Operating temperature
• 0 °C to +40 °C
Storage temperature
• −55 °C to +75 °C
Housing
• Plastic, VESA 10 cm x 10 cm
