TugmanUI with 17inch Touchscreen

Description
Specifications

Built for the toughest conditions. Meets NEMA IP65 certification for weather resistance to cold, heat, water and dust. Shipped with role-based customisable user interface.

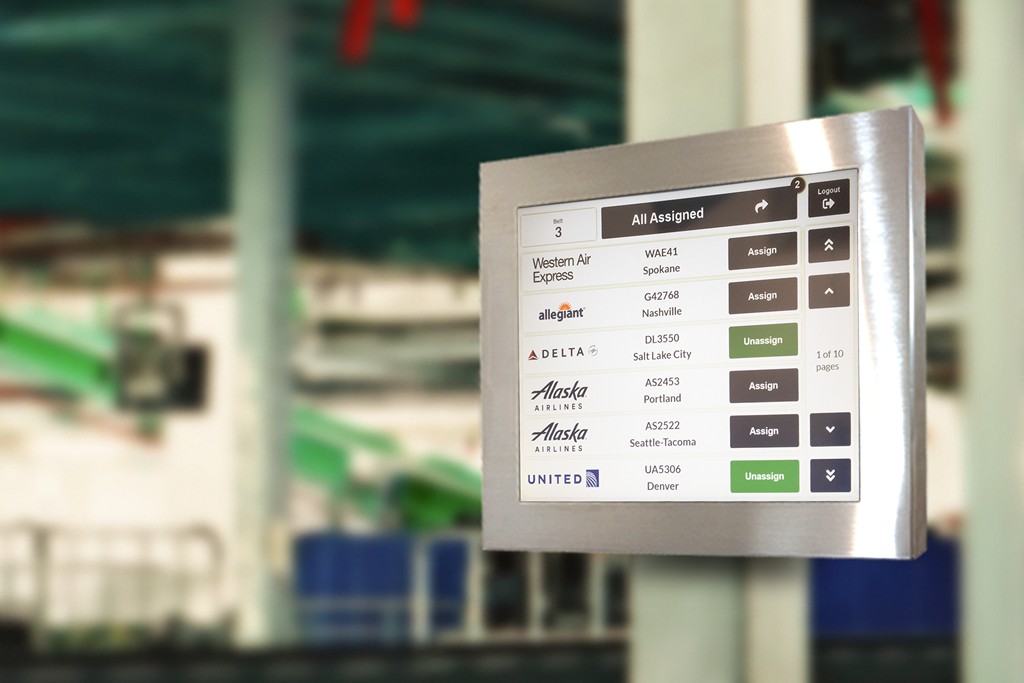

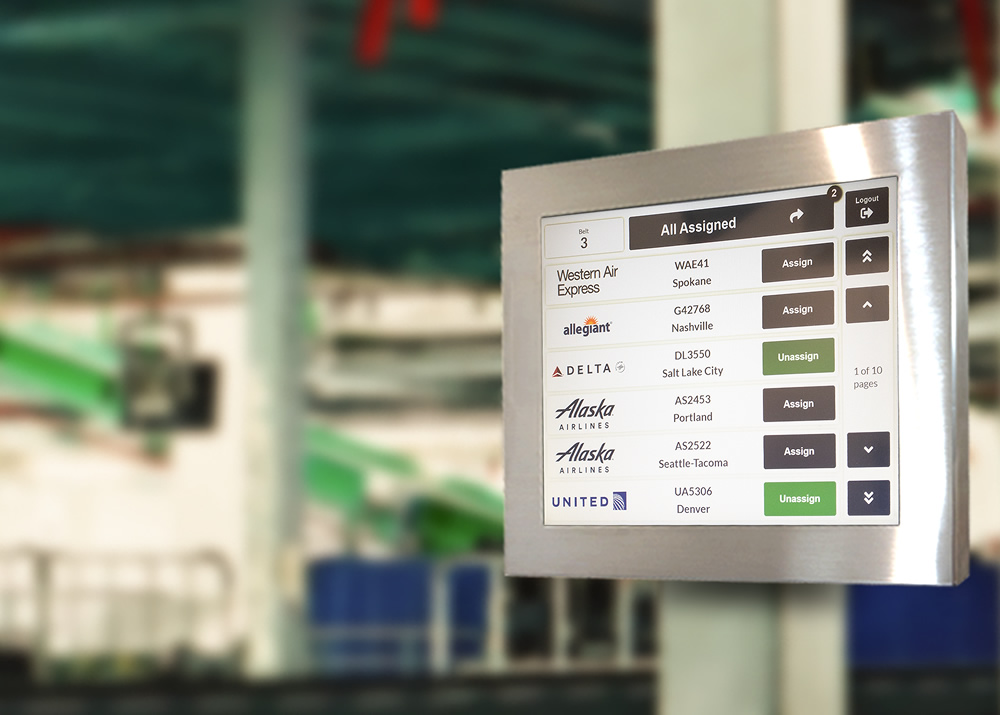

The Simpleway 17-inch touchscreen TugmanUI is assembled with a sealed brushed stainless-steel case built for the harshest airport environments. The access ports are fully protected meeting NEMA 4X/IP65 certification providing resistance to corrosive liquids and dust particles. The weather-proof resistive touchscreen is designed to be used while wearing work gloves.

The ruggedized TugmanUI is designed specifically for airport baggage handling operations with simple plug & play to our Simpleway solution. TugmanUI streamlines the baggage handling process while providing real-time baggage information for passengers. Simpleway Global’s TugmanUI software experience is intuitive, and efficient for bag handler operations.

Key benefits

  • Extra-large 17-inch touchscreen
  • NEMA 4X/IP65 certified
  • 8 connection ports
  • Designed for harsh conditions
  • Ruggedized stainless-steel case
  • Customisable user interface

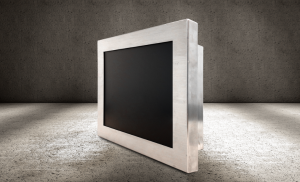

Click here to download the product sheet

Display
• 1280 x 1024 TFT resistive touchscreen

Weight
• 8000 g / 17.64 lbs.

Dimension
• 435 x 368 x 80 mm 17 x 14.5 x 3 inches

Operating temperature
• –10 °C to +60 °C 14 °F to +140 °F

Housing
• Stainless steel, VESA 75 mm x 75 mm, 10 mm x 10 mm

OS
• Windows 10
• preinstalled w Simpleway software

Memory
• 4GB RAM

Video
• Intel Gen9 UHD 600

CPU
• Intel Celeron J4105

Storage
• 64GB SSD

LAN
• 10/100/1000MB Realtek

Connections
• 2x USB 2.0, 1x RS232

Power
• Input DC12 V
• Consumption 35 W
