Container Dollies
| Company | SACO Airport Equipment |
|---|---|
| Product code | CD30, CD48, CD54, CD72, CD428 & CD728 |
Images

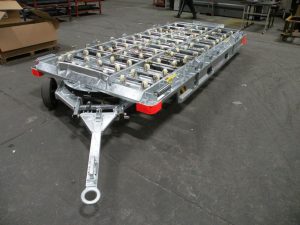

The Viking Airport Equipment container dolly range is designed and manufactured by our team to meet current IATA, BS and European standards. These one-piece welded chassis dollies offer a light but very robust structure made from high grade tensile steel with outer walls which are fabricated and folded to give them the ability to withstand reasonable collision impacts.
All container dolly variants have a top deck height of 508mm (20”) and are fitted with parking brakes to wheel hubs that are activated upon lifting the tow bar. The chassis is fully galvanised and comes with various lift up stops to retain specific containers. Simple handle operated stops located on the sides of the dollies allow them to easily retain containers with no levers, cables, foot pedals etc. to maintain.
Overall lightweight construction allows one person to easily manoeuvre the container dolly. A high specification design ensures long service on the airport apron, and our full CD range operate with turn table steer as standard.
All of our container dollies are hot dip galvanised to BS EN ISO 1461, and day-glow paint to all corners and hazard stripes to side and rear walls provide high visibility in all conditions.
All of this range is available with an anti step over barrier as an optional extra
Our range of container dollies provide you with options for moving various ULD’s around the airport apron.
CD30 CD48 CD54 CD72
Chassis Size (mm) 1780 x 1730 2657 x 1730 2996 x 1730 4024 x 1730
Loading Side
S.W.L. (Kgs) 2500 2500 2500 3000
Torsion Bar (Kg) 2 x 1500 2 x 1500 2 x 1500 2 x 1800
Shock Absorption Axles yes yes yes yes
Wheels 4 off 400 x 75 x 8 Solid rubber cushion tyres
Front Axle Mount Through 400mm ball bearing 400mm ball bear. 400mm ball bear. Through 850mm
ball bearing
Loading Height 508mm
Park Brake When tow bar Apex is raised
Tow Bar 50mm Tow eye in pivoting delta shape
Top Deck Castors 102mm with lead on side rollers
Rear Tow Bar Viking Standard Spring Loaded
Stops Fixed end for upwards restraint and standard finger for lateral restraint
CD428 CD728
Chassis Size (mm) 2490 x 1778 4024 x 1778
Loading Side
S.W.L. (Kgs) 2500 3000
Torsion Bar (Kg) 2 x 1500 2 x 1800
Shock Absorption Axles yes
Wheels 4 off 400 x 75 x 8 Solid rubber cushion tyres
Front Axle Mount Through 500mm ball bearing Through 850mm ball bearing
Loading Height 508mm
Park Brake When tow bar Apex is raised
Tow Bar 50mm Tow eye in pivoting delta shape
Top Deck Castors 102mm with lead on side rollers
Rear Tow Bar Viking Standard Spring Loaded
Stops Foot pedal operated side stops. Stop bar operated side stops. Fixed
headboards front and rear.
